You
may
be able
to use your CAC with your [Leopard
(aka 10.5.8)] Apple computer
Download
/ Save this page as a single / printable PDF
Lion
(10.7.x) users, please utilize the
Lion
support page
Snow Leopard
(10.6.x) users, please utilize the
Snow
Leopard support page
Tiger (10.4.x)
users, please utilize the Tiger
support page

If your
CAC does not work, you may have received
one of the newer PIV II CAC's. You
can verify by looking on the back above the black magnetic strip for either
of these:
"Gemalto TOP DL GX4
144" (see
below), "Oberthur
ID One 128 v5.5 Dual" (see
below), or "Oberthur ID One V5.2a
Dual" (see below)


Gemalto TOP DL GX4 144
cardholders should download the CAC-NG (BETA v0.96) TOKEND
file from
Mac
OS FORGE.org (there is NO support provided for this
open source
software), restart your computer, then proceed with the
instructions below.
If it still doesn't work, consider purchasing and installing
PKard.
Oberthur ID One 128
v5.5 Dual & 'some' 5.2a cardholders may need to purchase
and install
PKard or
Charismathics Smart Security Interface (CSSI-PIV) as these are the only way
we've been able to find to support your particular CAC.
You may also take the risk of using the [no support] (open
source) OpenSC or
CACkey programs.

You will have to install
Windows in a virtual environment
to be able to use Lotus Forms and ApproveIt. NOTE:
Your computer must have an Intel
processor.
An
older version of PureEdge
[with a
few tweaks] is available
here for your Mac. So, IF you only need to complete a form (and NOT sign it)
give it a try.
IF the lack of Lotus Forms and ApproveIt for Mac "bothers" you, I
recommend you contact the Army Publishing Directorate and let them know
your feelings: 703-692-1306 Monday - Friday 0700-1700 EST,
Webform, or
apdfcmp@conus.army.mil

We're seeing a
lower success rate of Leopard
computers working with the newer PIV II CACS, it seems to work fine with the older
CACs.
A 100% success
rate fix for Leopard users with the
Gemalto TOP DL GX4 144 CAC [and
Intel Chip]
is to
upgrade your computer to Snow Leopard.
However, if you have a PPC chip, your only option is to
purchase PKard, OR it may be time for a new computer.
:)
For
users of 10.5 with a MobileMe account, now is the
perfect opportunity to upgrade to 10.6.8
(Snow Leopard) for FREE!!
Offer
ends June 15, 2012

PKard
is the only solution (with support) for all CACs, and specifically if you have an
Oberthur ID One 128 v5.5 Dual or
V5.2a Dual CAC. You can purchase from Thursby
Software or
TX
Systems PKard demo
NOTE: PKard also adds websites to
your keychain automatically, so you don't have to enter them
manually.
Charismathics Smart Security Interface (CSSI-PIV) is another program
you can purchase
You may also take the risk of using the [no support]
(open
source) OpenSC or
CACkey programs.
If you have installed
one of these programs and want to remove it,
here's how

Article
on how to utilize Windows on your Mac from
Online Tech Tips.com
How to
make the web server "think" your using
Internet Explorer
Information on why
your CAC
may not work with Safari
after updating


How
to configure your Firefox on your Mac (using Cool key)
You can
download the
dod_configuration-1.3.3.xpi Firefox installation file from
Forge.mil (but
you may not need it)

The following
information is provided for your situational awareness while setting up your CAC on your Mac. It is updated as additional
information is available and your input is appreciated for solutions not
outlined here. Installation
instructions can be found below.
ActivClient
is a middleware program used by the DoD to facilitate the communication between
your Windows computer and your Common Access Card. It was
offered for the “Tiger” release (Mac OS X 10.4.x) and is not compatible
with Leopard (the current release of Mac OS X
(10.5.8)). The program was available for purchase through the manufacturer,
and is not available for download from DoD. The use of this program is not
supported here for Apple operating systems, as it is not required and
won't work with
Leopard (10.5.x).
Lotus Forms
is currently only available for Windows.
You will have to install Windows in a
virtual environment
or use Apple's native
Boot Camp
to be able to use Lotus Forms and ApproveIt. NOTE:
Your computer must have an Intel
processor.
An
older version of PureEdge [with
a few tweaks] is available
here for Macs with
Intel
processors only. So, IF you only need to complete a form (and NOT sign it)
give it a try.
Windows on
your Mac (You MUST have an
Intel
processor, it will NOT work with a PPC processor):
While you have made a conscious decision to “be a Mac,” the Government
has not, and therefore the easiest solution for some problems, such as:
Digitally signing forms with Lotus Forms and ApproveIt, some websites
(including digitally signing / encrypting emails in OWA), is to use Windows through a Virtual
Machine, such as Parallels Desktop (PDF),
VMware Fusion,
(Parallels vs. VMware
comparison), or
VirtualBox,
or through Apple’s native
Boot Camp.
This will require you to have a legal copy of Microsoft Windows. With these
programs, you can
install the ActivClient,
Lotus Forms, and
ApproveIt software and
also utilize all
the DoD tools from your Mac. The benefit of the Virtual Machines over Boot
Camp is that it will allow you to run Windows as an additional program
(without restarting your computer) and keep OS X running the entire time.
NOTE:
If
your your CAC reader is not being recognized by your
virtual Windows, follow this guidance:
VMware
Fusion: From the the menu bar, select
Virtual Machine,
then USB.
Find your CAC reader and select it.
Parallels Desktop
- (In Coherent mode):
Click the red parallel lines in the menu bar, Select
Devices,
USB, find your CAC reader and select it.
VirtualBox: Click the USB icon in the bottom of your screen, select
your CAC reader
Parallel
Desktop
- (Not in Coherent mode):
Simply
plug your reader into the computer and select whether you want to use it in
Mac or Windows
DTS
(Defense Travel System) uses a Java web applet and should allow you to
use DTS from your Mac.
NOTE: If you see a blank page after successfully
logging into DTS trying to navigate to your authorizations or vouchers,
Click the word Safari, Select Security, uncheck the box for
Block pop-up windows.
NOTE
for 64 bit Macs:
You may need to run
Safari in 32 bit mode vs. 64 bit. Here's how: Go to
Applications in Finder, right click get info on Safari.
Check the box Open in 32bit mode, then launch Safari
DCO (Defense
Connect Online) did NOT work on my 10.5.8 (Leopard) computer.
CAC Readers:
With a variety of CAC readers available today there are also a variety of
issues. The SCR series of CAC readers work very well. The SCR-331 reader may
need a Firmware Update. See
several different models of USB CAC readers
here. You will see a
small note on some of the readers to show you how to make them
compatible with your Mac.
Here is a
web page
that lists all known CAC readers and whether they are supported, should
work, or unsupported with the Mac OS'.
Outlook Web
Access / App (OWA):
The use of OWA on Mac currently has a known issue with time
outs. Beware that when using OWA on your Mac that if you are
inactive on the primary window, e.g. the inbox, while replying to an email,
your browser may time out. On a Windows computer the ActivClient
software maintains communications with the server and re-requests validation of your credentials. On
a
Mac this is not so, Safari will respond to a direct request for validation
of your credentials, however it will not re-request that you verify as the
server requires. Be sure that prior to selecting the Send button that you
copy your work to the clipboard as you will most likely have to restart
Safari and log back in. You also will not be able
to digitally sign / encrypt / decrypt emails since the S/MIME software
doesn't exist for a Mac.
Internet
Explorer Emulation: If you visit a website
with your Mac that states it can only be accessed via Internet Explorer, or
some web pages simply won't work while using your CAC with Safari, please
try this: Make sure your Mac is updated (like steps 1 & 2 below).
Open Safari, Click on the word Safari (in the bar at the top), select
Preferences..., Advanced, click the Show Develop menu in menu bar box.
Close Advanced screen. Now when you need to emulate IE, click on the word
Develop (at the top), click User Agent, then select Internet Explorer 7 or 8.
--Information provided by the Air Force IMA JAGs.
Air Force
Users look here for some
helpful information
Navy Users look
here for some specific
information
Setting
up your CAC for use on your Leopard (10.5.8) Mac:
Downloadable PDF of what you see below
Step 1:
Update your system. (10.5.8 is the last version of Leopard)

Step 2:
Plug in your CAC Reader to a USB Port
Step
3:
Click the Apple Icon in the upper left corner of your desktop and select
"About This Mac"

Step
4:
Click the "More Info" Button in the window that pops up. (This opens
System Profiler)

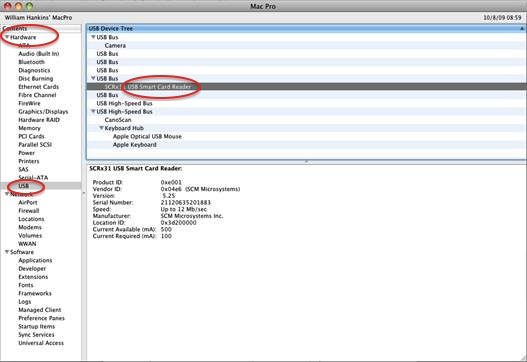

Step 5:
Within the "Hardware" Category select "USB." On the right
side of the screen the window will display all hardware plugged into the USB
ports on your Mac. You should see “Smart Card Reader.” If the Smart
Card reader is present, it is installed on your system, and no further
hardware changes are required, e.g. additional drivers / Firmware upgrades.
You can now Quit System Profiler. NOTE: Please look at the
Version: If you are using an SCR-331 Reader with version 5.25, it should work
fine. If it is below 5.25, please update your
firmware.

Step 6:
Click: Go (in the taskbar at the top of the screen), Utilities, Keychain Access.
NOTE: If you don't see Go, click the finder
icon in
your Dock. Click Applications (under Places), Utilities,
Keychain Access

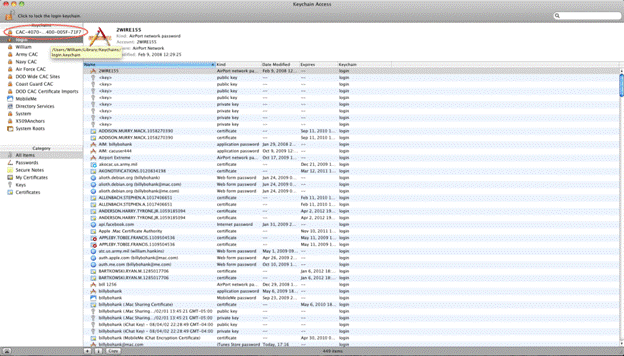

Step 7:
Insert your CAC into the CAC Reader. In the upper left portion of
the Keychain Access window, under "Keychains" your CAC should show up (CAC...XXXX-XXXX-XXXX-XXXX-XXXX), click it. In the right side you will see the
certificates that are on your CAC. (If your CAC does not appear remove it
from the reader, unplug the CAC Reader, quit, and re-open Keychains Access,
plug in the Card Reader, and insert your CAC)

Step 8:
Double
Click the "Padlock" icon in the upper left corner of the program window,
you will be prompted for your CAC PIN. Enter your CAC PIN and select OK to unlock your CAC.
NOTE: If
your padlock will not unlock, and you may have one of the new CACs, read
above or your CAC may be
blocked.
Step 9:
Select the desired certificate, which will show as:
LASTNAME.FIRSTNAME.MIDDLENAME.NUMBERS on the right side of the screen. Right Click
your mouse and select "New Identity
Preference" If you don't have a two button mouse, hold the <ctrl>
key and click your mouse to get the "New Identity Preference" option.
NOTE:
You should see 3 or 4 certificates, if you see less than 3, you will need a
new CAC.
Step 10:
Enter the URL / website (from the links below) for the
website you wish to access using your CAC, select the appropriate
certificate and click “Add”:
Step 11:
Quit Keychain Access (and Applications (if it is still open)), remove your
CAC from the reader, and re-insert it. Open Safari and begin navigating to
your CAC enabled website(s).
Examples
of URLs to add to your Keychain Access
More OWA links are located on the
OWA
page
NOTE:
The slash at the end of the URL does make a difference
Army:
- AKO: https://akocac.us.army.mil/
(DOD CA-XX)
- AKO
Webmail:
https://wmcac.us.army.mil/
(DOD CA-XX)
- Fort
Gordon OWA (NASE Email Access):
https://rw3.army.mil/EXCHANGE
(EMAIL CA-XX)
- Army
Reserve OWA (USAR Email Access):
https://owa.usar.army.mil (EMAIL CA-XX)
-
US Army
garrison Hawaii:
https://owa.hawaii.army.mil/EXCHANGE (EMAIL CA-XX)
- Center for
Army Lessons Learned (CALL):
https://call3.leavenworth.army.mil
(DOD CA-XX)
- CONUS
AMEDD Exchange OWA:
https://medmail-conus.amedd.army.mil/Exchange
(EMAIL CA-XX)
- National
Guard Knowledge Online:
https://gkoportal.ngb.army.mil
(DOD CA-XX)
- NORAD
NORTHCOM CAC Registration Site:
https://registration.noradnorthcom.mil/
(DOD CA-XX)
- NORAD
NORTHCOM External Access Site:
https://operations.noradnorthcom.mil
(DOD CA-XX)
- Soldier
Survey Site:
https://fcportal.forscom.army.mil/
(EMAIL CA-XX)
More OWA links are located on the
OWA
page
Navy:
- Navy
Knowledge Online (1 of 2):
https://cac01.nko.navy.mil
(DOD CA-XX)
- Navy
Knowledge Online (2 of 2):
https://cac01.nko.navy.mil:443/app1/index2.jsp
(DOD CA-XX)
-
Navy Knowledge Online
(E-Learning):
https://ile-deers.nko.navy.mil/ELIAAS/logon/RedirectToSystem.jsf (EMAIL
CA-XX)
Also know, this will work if you right-click the "e-Learning" banner
and open in a separate tab or window. The Cert and banner click were tested
on Google Chrome, and Safari with no problems.
-
Navy
Webmail: https://webmail.nmci.navy.mil
(DOD CA-XX)
- Reserve
Portal:
https://private.navyreserve.navy.mil/
(EMAIL CA-XX)
- NADSUSEA
(Navy East OWA):
https://webmail.east.nmci.navy.mil
(EMAIL CA-XX)
- NADSUSWE
(Navy West OWA):
https://webmail.west.nmci.navy.mil
(EMAIL CA-XX)
- NADSUSEA
NCIS COI (Navy NCIS OWA):
https://webmail.ncis.nmci.navy.mil
(EMAIL CA-XX)
- NMCI-ISF
(Navy ISF OWA):
https://webmail.isf.nmci.navy.mil
(EMAIL CA-XX)
- PADS (Navy
PADS OWA):
https://webmail.pacom.mil
(EMAIL CA-XX)
- PADS (Navy
PACOM SMR Users OWA):
https://webmail.exceptions.pacom.mil
(EMAIL CA-XX)
- IATS NMCI
Webmail (1 of 3):
https://iats.nmci.navy.mil
(EMAIL CA-XX)
- IATS NMCI
Webmail (2 of 3):
https://iats.nmci.navy.mil/
(EMAIL CA-XX)
- IATS NMCI
Webmail (3 of 3):
https://iats.nmci.navy.mil/cas
(EMAIL CA-XX)
- Marine
Corps Webmail:
https://webmail.us.nmci.usmc.mil/Exchange
(EMAIL CA-XX)
- Navy
InfoSec:
https://infosec.navy.mil
(DOD CA-XX)
- Navy
Medical (1 of 3):
www.med.navy.mil:80
(DOD CA-XX)
- Navy
Medical (2 of 3):
https://nmo.med.navy.mil/
(DOD CA-XX)
- Navy
Medical (3 of 3):
https://nmo.med.navy.mil/pki/default.cfm
(DOD CA-XX)
- JTF-GNO:
https://www.jtfgno.mil
(EMAIL CA-XX)
-
NRRM:
https://nrrm.navyreserve.navy.mil/Nrrm.Web/Modules/Shell/Shell.aspx
(EMAIL CA-XX)
- BUPERS:
https://pki.bol.navy.mil/
(DOD CA-XX)
- NSIPS (1
of 2);
https://nsips.nmci.navy.mil
(DOD CA-XX)
- NSIPS (2
of 2):
https://nsipsweb.nmci.navy.mil/nsipsclo/logon
(DOD CA-XX)
- NROWS:
https://nrows.sscno.nmci.navy.mil
(DOD CA-XX)
- Navy
Reserve Portal (1 of 2):
https://private.navyreserve.navy.mil/
(DOD CA-XX)
- Navy
Reserve Portal (2 of 2):
https://private.navyreserve.nayv.mil/pages/default.aspx
(DOD CA-XX)
More OWA links are located on the
OWA
page
Air
Force:
(The issues with the AF Portal have been remedied, look
here for how to make it
work)
- AF Portal
(1 of 3):
https://www.my.af.mil
(DOD CA-XX)
- AF Portal
(2 of 3):
https://www.my.af.mil/EAI_JUNCTION/eai/
(DOD CA-XX)
- AF Portal
(3 of 3):
https://www.my.af.mil/EAI_JUNCTION/eai/auth
(DOD CA-XX)
- Air Force
Portal Virtual MPF Site:
https://w20.afpc.randolph.af.mil/afpcsecurenet20/
(DOD CA-XX)
- Air Force
Jag WebFLITE (1 of 2):
https://logon.jag.af.mil
(DOD CA-XX)
- Air Force
Jag WebFLITE (2 of 2):
https://aflsa.jag.af.mil/
(DOD CA-XX)
- Air Force
Education Exchange:
https://cacwebmail.afit.edu/Exchange
(EMAIL CA-XX)
- AF AMC
Exchange Email:
https://mail.amc.af.mil/exchange
(EMAIL CA-XX)
- Listing of all Air
Force OWA sites
More OWA links are located on the
OWA
page
Coast
Guard:
- Coast
Guard Email:
https://cgwebmail.uscg.mil/
(EMAIL CA-XX)
More OWA links are located on the
OWA
page
DoD:
- Defense
Manpower Data Center:
https://pki.dmdc.osd.mil
(DOD CA-XX)
- Defense Travel System (DTS):
http://www.defensetravel.osd.mil/dts/site/index.jsp (DOD CA-XX)
- DOD 411
Directory:
https://jeds.gds.disa.mil
(EMAIL CA-XX)
- Tricare
Online:
https://www.tricareonline.com/preloginHome.do
(DOD CA-XX)
- Tricare (1
of 3):
https://cac1.tricareonline.com/
(EMAIL CA-XX)
- Tricare (2
of 3):
https://cac2.tricareonline.com/
(EMAIL CA-XX)
- Tricare (2
of 3):
https://cac3.tricareonline.com/
(EMAIL CA-XX)
- Military
Health System:
https://mhssc.timpo.osd.mil
(DOD CA-XX)
More OWA links are located on the
OWA
page
Note on
URL’s:
It is important to understand that when entering URL’s into an identity
preference they must be precise. As you can see in the preceding references
some end with a “/”. Not all websites will have this. Every website that
attempts to validate your CAC must search a database (Usually internal to
the site) and the URL you enter is creating the link between that database
and your CAC. As there is not a single database that all sites use for this
purpose you will encounter sites that do not function properly initially.
If you pay attention to the actions of the browser when you click the login
button you will usually see where the browser is being pointed and can use
that URL in your Identity Preference. For the most part you will not need
to reference a specific site, e.g. ending in .html etc, but instead they will
use the broad address as above.
Note on
Certificate Selection:
When creating Identity Preferences within Keychains it is important to
understand the difference between your Certificates. There are 3 certificates on your CAC:
- DOD
CA-XX, used for identification verification, is the top most certificate
shown in Keychains. This will be used when logging into AKO. This will
show up with a red “x” beside it a majority of the time as “Unsigned.”
- DOD
CA-XX EMAIL, used for signatures, is the second in the list of
certificates in the list. This certificate is used when you digitally sign
an email or document, and by some websites for verification of your
identity, e.g. Outlook Web Access. When logging into a non-AKO site keep in
mind that whatever certificate you used when logging on at your work
computer will be required on your Mac.
- DOD
CA-XX EMAIL, used for encryption, is the third in the list of
certificates. This will not be used when accessing websites, and unless you
are accustomed to encrypting your email, will not be used at all.
When
creating Identity Preferences there will be some trial and error involved in
selecting the correct URL / Certificate combination. If you create an
Identity Preference and attempt to change the certificate it uses you may
see more than 3 certificates when you open the drop down menu. They
are grouped into their respective classes, the first pair being the DOD
CA-XX, second pair EMAIL CA-XX (Signature) and the third pair EMAIL CA-XX
(Encryption). Choose either of the first two if you want the DOD CA-XX and
so forth. They point to the same certificate.
This
should set you up to access sites that are authenticated with your CAC.
Please let me know how this works out for you and what issues you have.
Once again if you have additional sites you have found solutions for please
let me know and I will include them in the list on this page.
Written by Bill Hankins, Revised by Michael J.
Danberry while following the instructions on my own iBook G4.

Some
other links that may assist you if you are still having problems with the
instructions above:
http://www.appleMacgeniusville.com/2008/10/06/setting-up-safari-for-cac-login-to-dod-websites/
http://www.appleMacgeniusville.com/2009/09/15/enabling-cac-login-and-creating-filevault-cac-user/
Another single
file for CAC installation instructions for your
Mac.

If you are still having problems,
contact us
|
