INFORMATION ON DTS (DEFENSE TRAVEL SYSTEM)


Mac 10.9, 10.10, and users with Safari 6.1 & aboveMac 10.7 and 10.8  |  iPad / iPhone  |  Mac 10.6 and below



Internet Explorer 11 users with Windows 8.1 or Windows 7



DTS Logo
I have been using DTS for over 7 years and was previously a DTS Approving Official for my Brigade.



Follow along with this "Smart Book" to hopefully make DTS easier for you.

DTS Smart Book thumbnail

PowerPoint version



DTS Web-based Training



DTS PROBLEMS AND SOLUTIONS

DBSign information

fogflagbar image

Windows 8.1 & 7 users with Internet Explorer 11

Make sure you have the latest Java installed on your computer for your web browser.  http://www.java.com is the official location to download it from.  Please read the prompts, so you are not installing extra stuff you don't really need (like toolbars).

JRE stands for Java Runtime Environment which is Java.

Other people are having some other issues.  Please try these each of these ideas individually in the order listed"

1.  Add 'osd.mil' to your Compatibility View Settings (slide 19 of this guide)

also shown on https://militarycac.com/PDFs/Internet_Explorer_11_Issue.pdf



2.  Use the Internet Explorer executable located at: "C:\Program Files\Internet Explorer\iexplore.exe" right-click it & select Run as administrator.  You may still get the same "Java Plug-ins incompatible message" warning, but it will allow you to enable the plug-in and access DTS.



3. If you are still having issues, you might also need to uncheck "Enable Enhanced Protected Mode"

Here is where to find this option:  Click Tools, Internet Options, Advanced (tab)



Enable Enhanced Protected Mode image



4.  Some users have had to reduce the security level of Java

https://militarycac.com/PDFs/JAVA_Issue_with_DTS_Logins.pdf

fogflagbar image

Mac 10.9, 10.10, and users with Safari 6.1 and above

Install Java from http://www.java.com

Test Java at:  http://demo.dbsign.com/java/

Run DBSign Test Utility  http://download.dbsign.com/DBsignTestUtility/

Video from DBSign on how to set up DTS on Mavericks OS X 10.9 (same instructions works for Yosemite 10.10

Information below borrowed from:  http://demo.dbsign.com/osx/#browsers

If you have Safari 6.1 or above on Mavericks or Mountain Lion, there are a few additional steps to configuring Safari for DBsign.  There are new security features in Safari that prevent DBsign from reading and writing to its configuration files without explicit permissions.

In order to grant the necessary permissions to web sites running DBsign, you must edit Safari's security preferences.

Mavericks 10.9- From the "Safari" menu, choose "Preferences" and then go to the "Security" (tab).  Here, you will see a button that says "Manage website settings...".  When you click on the button, you will see something like this:

Yosemite 10.10- From the "Safari" menu, choose "Preferences" and then go to the "Security" (tab).  Here, you will see a section titled "Internet plug-ins" with a button that says "Website settings..." .  When you click on the button, you will see something like this:

Safari Prefs image

Locate each web site that uses DBsign in the list (DBsign's demo.dbsign.com site, the Defense Travel System site, etc). In the drop down box to the right of the web site address, choose "Run in Unsafe mode".  This gives DBsign all the permissions it needs to run properly.  DO NOT change this setting for web sites you do not explicitly trust.

If you do not see the proper web site in the list, you will need to visit that site and attempt to use DBsign.  You will most likely receive a DBsign error, but the web site should now be included in this list. You should be able to change its settings now.

How to I test DBsign?

DBsign has a test page here:  http://demo.dbsign.com/test

If Java is working, and DBsign is able to load, you will see a page that looks like this:

dbsign_test image

If the pages just sits there with a "Loading DBsign..." message, then Java is probably not working properly. See the section above for information regarding checking your Java version.

If you get an error message when loading this page, please contact DBsign for help.

If the page loads properly, you should be able to click on the "sign" button in the middle of the page. This will tell DBsign to generate a digital signature using one of the certificates on your computer or smart card. If no error occurs, your page will look like this (with signature information filled out):

dbsign_test_signed image

If you get an error message when attempting to sign, please contact DBsign for help.



NOTE:  If you are having problems logging onto all CAC websites (including DTS) [and you can see your name entry between the words: keychain and login in Keychain access] there is a good chance you have blocked your CAC.  Unfortunately there is no way to verify a blocked CAC on a Mac.  It can be checked via ActivClient on a Windows computer (or virtual machine).  If your CAC is in fact blocked, your only option is to visit an ID card office to get the card unblocked.

fogflagbar image

Mac 10.7.x through 10.8.x Users

Read information from DBSign regarding using DTS with your Mac.

Apple removed Java from the OS, so, using DTS now requires additional steps

Every time Apple updates to a new version of their OS, you'll need to update your Java again from: http://www.java.com

Run DBSign Test Utility  http://download.dbsign.com/DBsignTestUtility/

You can verify which version of Java you currently have installed by visiting:  http://demo.dbsign.com/java

If you have have the correct Java installed, please test it by following this link:  http://demo.dbsign.com/test.  If problems still exist with DTS, follow these instructions from DBSign http://demo.dbsign.com/osx_java7_fix/

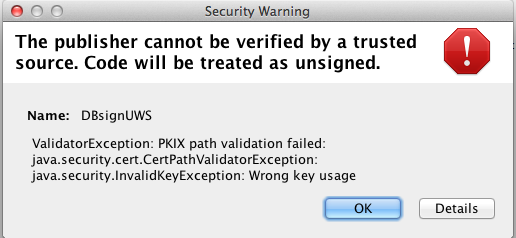

If you encounter the following error....  Read below

DBSign Error message

You must disable OCSP checking for Java applets first

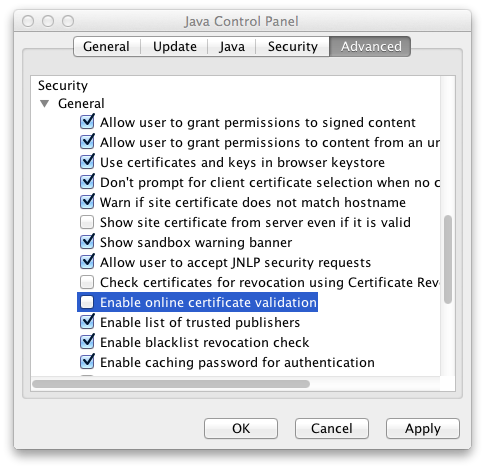

HERE'S HOW:  Open the Java Control Panel (this is the "Java" icon in OS X System Preferences). Open the Advanced (tab). Find the section labeled Security and uncheck the box labeled Enable online certificate validation. See below.

dbsign screen shot

According to the bug reports this issue has been fixed in an upcoming Java patch release, but we do not know when that will be publicly available.



Question 1:  I'm seeing a blank page after logging into DTS and trying to navigate to my authorizations or vouchers.  How do I fix this?

Answer 1-1 Click the word Safari, Select Security, uncheck the box for Block pop-up windows.



NOTE:  For 64 bit Macs You "may" need to run Safari in 32 bit mode vs. 64 bit.  Here's how:  Go to Applications in Finder, right click get info on Safari.  Check the box Open in 32bit mode, then launch Safari.

fogflagbar image

When will I be able to use DTS on an iPad or iPhone?

on 7 July 2014, Thursby Software released PKard for iOS version 2.1.4.  This version allows access Defense Travel System (DTS)


 fogflagbar image

Mac 10.6.x and below

Run DBSign Test Utility  http://download.dbsign.com/DBsignTestUtility/

1) Verify Java is installed in the Installed Software tab of the Software Update pane of System Preferences (or Apple menu > System Preferences).

2) In 10.6.8, Java preferences are not in System Preferences pane but are instead a separate app (Applications > Utilities > Java Preferences), and DTS won't download the DBsign applet until you check the "Enable applet plug-in and Web Start applications" checkbox at the top of the General tab in the Java Preferences app.

3) In Safari, enable pop-up menus by *unchecking* the "Safari > Block Pop-Up Windows" menu item.



If you have questions or suggestions for this site, contact Michael J. Danberry
