THIS PAGE IS HERE FOR THOSE WHO HAVE INSTALLED ANY OF THE CAC ENABLING PROGRAMS AND NEED TO REMOVE IT or THEM



New imageIf you have recently upgraded your Mac OS then you should follow this entire page, DO NOT run the disabling built in ability.  BUT, you will need to reenable the built in ability (last item on this page)New image



(Please go through the entire list and look for, then remove ALL of them)



ActivClient for Mac  |  CACKey  |  Centrify Express  |  CSSI  |  High Sierra built in Smart Card ability  |  Mojave built in Smart Card ability  |  OpenSC  |  PKard  |  Sierra built in Smart Card ability  |  Smart Card Services / Files to manually remove  |  How to Unpair your smart card  |  Re-enable native support



How to display your hard disk on your desktop to follow the steps below

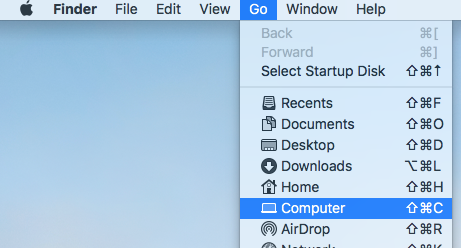

Click the word GO at the top of your main desktop, select Computer

If you don't see the word GO, click Finder (2 little faces) in the bottom left corner of screen

Mac OS Go Button image

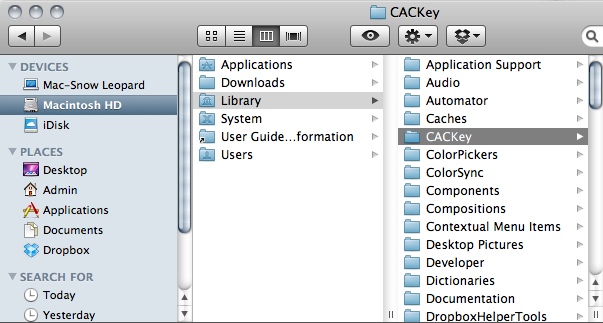

How to Remove CACKey:



Go to:

Hard disk / Library /

Delete "CACKey" folder

Also follow this section to remove .tokend files





How to Remove OpenSC:



Run in Terminal.app:

sudo /usr/local/bin/opensc-uninstall



or

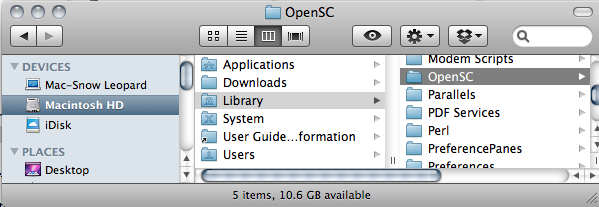

Go to:

Hard disk / Library /

Delete "OpenSC" folder



Go to:  Hard disk / Library / LaunchAgents /

Delete "opensc-notify.plist"



Also follow this section to remove .tokend files







How to Remove CSSI:



Go to:

Hard disk / Library / Application Support /

Delete "CSSi" folder

Also follow this section to remove .tokend files







How to Remove PKard:



Go to:

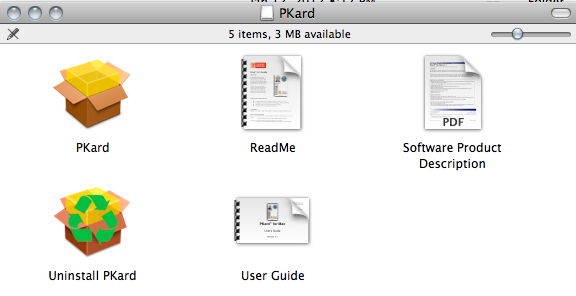

Hard disk / Library / Application Support / PKard

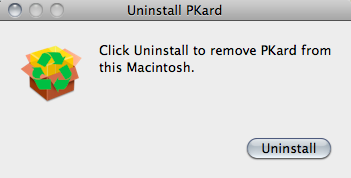

Run the PKard Uninstall program, select "Uninstall PKard"



Click "Uninstall"

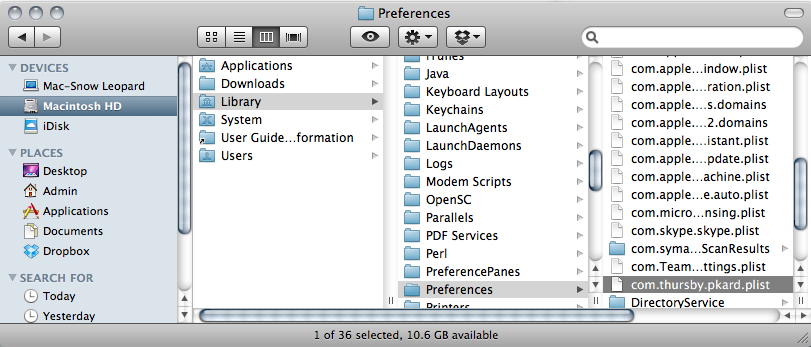

You also need to modify a system file that Thursby changed.  This does not happen automatically when running the Uninstall option listed above.



1. Remove your CAC from the reader

2. Open Terminal, by typing Terminal in the spotlight search

3. Copy the entire command below [starting with sudo, and ending with ~/] and paste it into the terminal window (or manually retype it)



sudo mv /Library/Preferences/com.apple.security.smartcard.plist ~/.Trash/



4. When prompted for your computer password, know that the cursor will not move, type it in, and hit enter to process.



5. Logout of Terminal,



6. Restart computer

Information provided from:  https://www.thursby.com/forum/viewtopic.php?t=3394



Also follow this section to remove .tokend files



.

How to Remove Centrify Express



Go to:

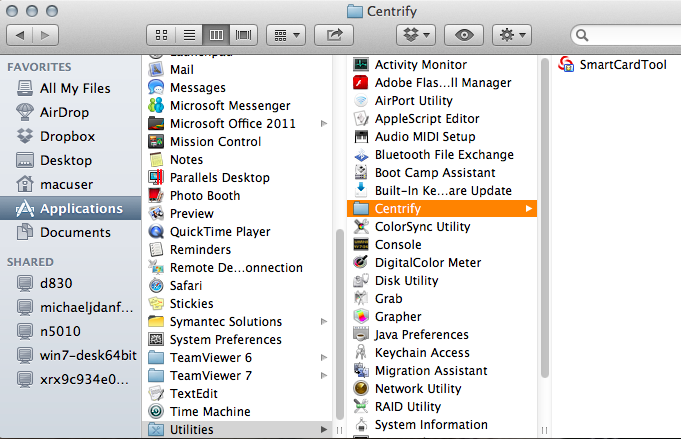

 Hard disk / Applications / Utilities / Centrify /

Double click:  SmartCardTool or SmartCardAssist



Select "Uninstall" from the Centrify Express for Smart Card window

Centrify Express Uninstall image

Also follow this section to remove .tokend files



.



How to Remove ActivClient for Mac



Go to:

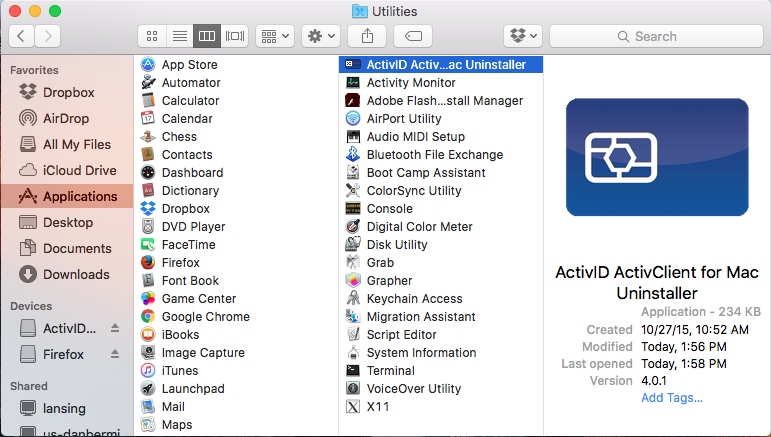

 Hard disk / Applications / Utilities

Double click:  ActivID ActivClient for Mac Uninstaller

AC uninstall location





Select "Uninstall" from the ActivID ActivClient for Mac Uninstaller screen

Uninstall-ActivClient



ActivClient for Mac users must also remove the "acpkcs220.dylib" file







All Programs listed above may also have files located here (except for ActivClient):

Mac OS X 10.5.x - Mac OS X 10.10.x,  10.11.x and newer look below



Go to:

 Hard disk / System / Library / Security / tokend /

Location of TokenD files image

Delete "BELPIC.tokend", "CAC.tokend", "CACNG.tokend", "CSSI.tokend", "OpenSC.tokend", "JPKI.tokend", "ac.ac4mac.token", "PIV.tokend", and / or "PKCS11.tokend" files





Sometimes a few other files need to be removed, they are found in:

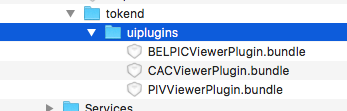

Hard disk / System / Library / Security / tokend / uiplugins /

Delete "BELPICViewerPlugin.bundle", "CACViewerPlugin.bundle", and / or "PIVViewerPlugin.bundle" files

NOTE:  If you can't delete them, skip them and follow next step.

UIPlugins





Mac OS X 10.11.x and newer systems

Go to:

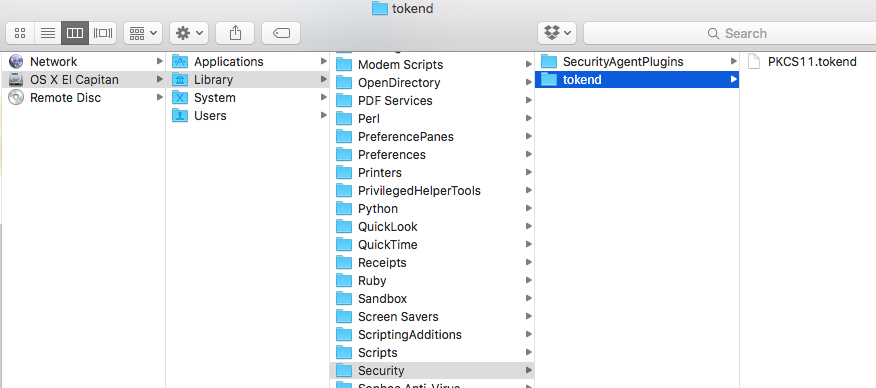

Hard disk / Library / Security / tokend /

Delete "BELPIC.tokend", "CAC.tokend", "CACNG.tokend", "CSSI.tokend", "OpenSC.tokend", "JPKI.tokend", "PIV.tokend", and / or "PKCS11.tokend" files

073 tokend removal location



ActivClient for Mac systems

Go to:

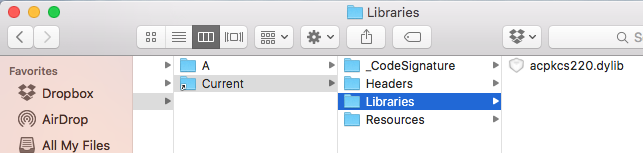

Hard disk / Library / Frameworks / ac.ac4mac.pkcs11.framework / Versions / Current / Libraries/

Delete "acpkcs220.dylib"

acpkcs220.dylib location







Mojave (10.14.x), High Sierra (10.13.x), and Sierra (10.12.x) Built in Smart Card Ability



DO NOT DISABLE on 10.15.x, 11.x.x, or 12.x.x and newer, as there is NO alternative



NOTE: Mojave, High Sierra, and Sierra have a "built in Smart Card ability" that works for 'some' people 'some' of the time.  To use your CAC "more consistently" I recommend you install a 3rd party CAC enabler, such as CACKey or PKard.  This section shows you how to disable the built in smart card ability found on Mojave, High Sierra, and Sierra.


NOTE2: Doing this will remove the ability to login to your computer with your CAC, and will require you to install a 3rd party CAC enabler such as CACKey or PKard.



1. Remove your CAC from the reader

2. Open Terminal, by typing Terminal in the spotlight search

3. Copy the command below [starting with sudo, and ending with pivtoken] and paste it into the terminal window (or manually retype it)



sudo defaults write /Library/Preferences/com.apple.security.smartcard DisabledTokens -array com.apple.CryptoTokenKit.pivtoken



3a. I recommend you run this command twice.



4. When prompted for your computer password, know that the cursor will not move, type it in, and hit enter to process.



5. After that it should be disabled.  Logout of Terminal, restart computer, and try again

















NOTE3: If you have recently updated your Mac OS, you may need to re-enable the built in Smart Card ability after removing all installed enablers listed above:



1. Remove your CAC from the reader

2. Open Terminal, by typing Terminal in the spotlight search

3. Copy the entire command below [starting with sudo, and ending with pivtoken] and paste it into the terminal window (or manually retype it)



sudo defaults write /Library/Preferences/com.apple.security.smartcard DisabledTokens -array && sudo defaults write /Library/Preferences/com.apple.security.smartcard EnabledTokens -array com.apple.CryptoTokenKit.pivtoken



3a. I recommend you run this command twice.



4. When prompted for your computer password, know that the cursor will not move, type it in, and hit enter to process.



5. After performing these steps, the built in smart card ability should be enabled.



6. Logout of Terminal,



7. Restart computer



8. When prompted to Pair your Smart Card with your computer, you can select Pair, or Cancel.  If you elect to pair, you will have an additional option to utilize your CAC and PIN to access your computer [when the CAC is in the reader].  If the CAC is not in the reader, you can still use your fingerprint, or username/password option.

NOTE:  Pairing your CAC to your login increases the possibility of blocking your CAC, which would then require you to visit an ID card office to get it unblocked.







How to UNPAIR your smart card



NOTE:  This can "help" when you migrate your information to a new computer too.



1. Remove your CAC from the reader

2. Open Terminal, by typing Terminal in the spotlight search.

3. Type:  sc_auth list

4. Copy the hash, which will be 40 characters comprising of numbers and letters, paste it in place of the [hash] in the command below

5. Type:  sc_auth unpair -h [hash]



Instructions found at:  https://support.yubico.com/support/solutions/articles/15000006468-using-your-yubikey-as-a-smart-card-in-macos
